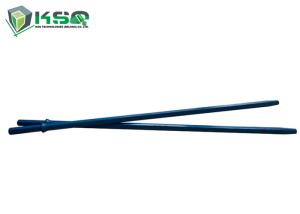

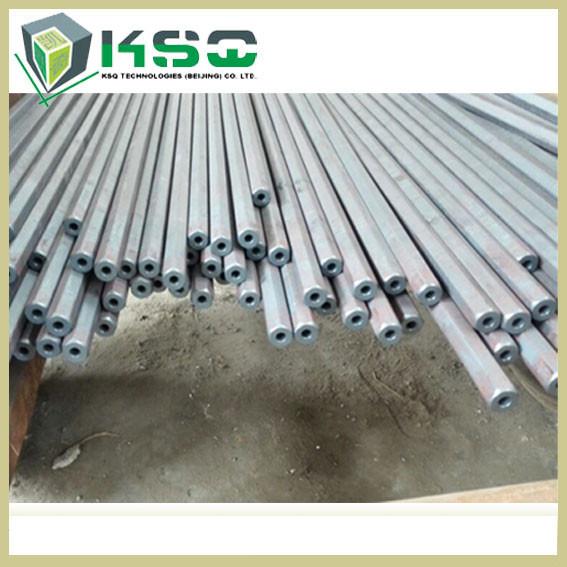

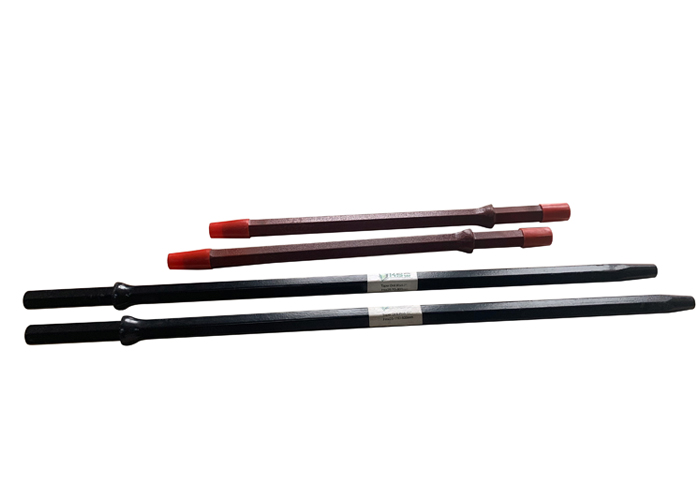

Small Hole Diameter Drill Extension Rod Tapered Drill Rod
Description
Tapered Drill Equipment Also Provides A Hexagonal Chuck Section To Provide Leverage For The Rotation Chuck Bushing, Which Usually Also Has A Forged Collar To Maintain The Proper Shank Striking Face Position In The Rock Drill, And Match A Tapered Bit At The Socket End. Holes Are Typically Drilled In 0.6 M Increments To Accommodate The Air-Leg Feed Length.
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
Notes:
1. The Ordinary Connection Taper Degree Is 7º, 11º And 12º, Other Degrees Like 4.8º, 6º And 9º Are Also Available Upon Request;
2. The Ordinary Shank Is Hex22 × 108mm, Hex25 × 159mm And Other Styles Are Also Available If Upon Customers’ Request;
3. The Rod Length Must Be Specified In Order;
4. In Order To Adapt To Different Rock Conditions, The Drill Rod Is Selected By Users.
| Product Name | Taper Drill Rod |
| Taper Degree | 4°, 6°, 7°, 11°, 12° |
| Diameter | 19mm - 25mm (or 1 inch to 7/8 inch) |
| Length | 400mm - 6000mm |
| Drill Rod Shank | Shank 22 x 108mm, shank 25 x 159mm |
| Material | High strength alloy steel bar |
| Color | Black or based on customer requirements. |
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
